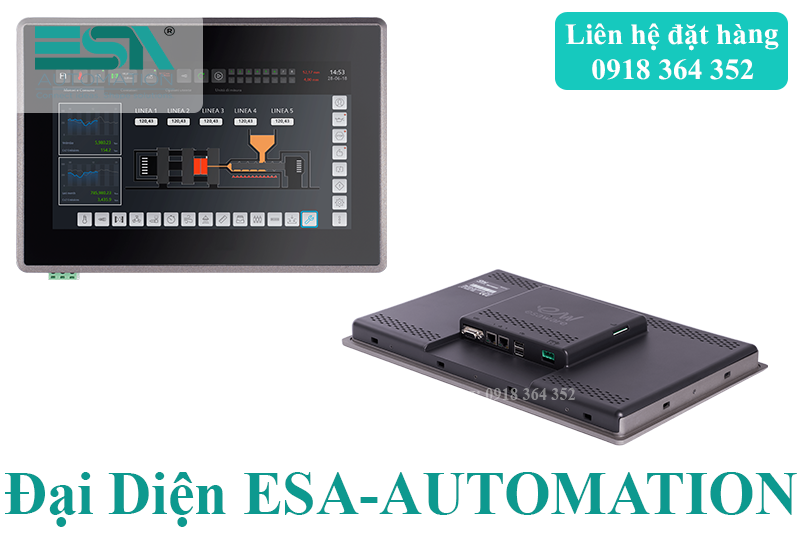

EW100BD ANDROID - Web Panel - ESA Automation Viet Nam

0 Review(s)

Quick Overview

  1. Model: EW100BD ANDROID
  2. Xuất xứ: Italy
  3. Nhà cung cấp: STC Viet Nam
  4. Hãng sản xuất: ESA AUTOMATION

Availability: In Stock

Regular Price:

Special Price Liên Hệ: 0918 364 352

Contact

Details

EW100BD ANDROID - Web Panel

4.0 evolution of the classic HMI client
ESA Web Panel represents the Industry 4.0 based evolution of the classic HMI client. Thanks to the powerful built-in browser and the true flat display up to 15”, it optimizes the visualization of production data and of any interface developed in HTML5.

These are the main features:

  • Customized Launcher
  • Chrome Bowser
  • Preinstalled MicroBrowser  (EW1xxxD300)
  • SNTP Server and Client
  • Aluminium front Side PTFE coating
  • Capacitive Touch Screen
  • High Bright 16 Millions Colors Display
  • Arm Cortex A9 Quad Core CPU
  • 2 GB DDR3L Ram
  • 8 GB Flash
  • SDHC v2.0 (up to 25 Mbyte/s)
  • 2 USB v2.0 Ports
  • 1 Ethernet 1 Gb  Port + 1 Ethernet 10/100 Mb
  • 1 RS232-485 Port (optional)
  • Wi-Fi and 3G (optional)

Details

EW107BD2SP EW107BD3SP EW110BD2SP EW115BD2SP
Display Size 7" 7" 10,1" 15,6"
Display Technology TFT TFT TFT TFT
Display Backlight LED LED LED LED
Protection degree (front) IP 66 IP 66 IP 66 IP 66
Browser Chrome/ WebView (fullscreen) Chrome/Microbrowser Chrome/ WebView (fullscreen) Chrome/ WebView (fullscreen)
Certifications CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / UL CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / UL CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / UL
Touch Technology Capacitive Capacitive Capacitive Capacitive
Processor ARM Cortex A9 Quad-Core ARM Cortex A9 Quad-Core ARM Cortex A9 Quad-Core ARM Cortex A9 Quad-Core
Humidity <90% (non condensing) <90% (non condensing) <90% (non condensing) <90% (non condensing)
Storage Temperature (°C) -20 … + 65 -20 … + 65 -20 … + 65 -20 … + 65
Operating Temperature (°C) -10 … + 50 (non condensing) -10 … + 50 (non condensing) -10 … + 50 (non condensing) -10 … + 50 (non condensing)
Display Resolution (pixel) 1024x600 1024x600 1280x800 1366x768
Display Brightness (cd/m²) 500 500 350 300
External dimensions(W/H/D) (mm) 192 x 132 x 32 192 x 132 x 32 269,3 x 187,3 x 45 416,5 x 265,5 x 45
Cut-out dimensions (W/H) (mm) 185,0 x 125,0 185,0 x 125,0 255,5 x 173,5 402,5 x 251,5
Backlight life(hours) 50k 50k 30k 50k
Display Colors 16M 16M 16M 16M
Power Supply (Vdc) 12-32 12-32 12-32 12-32
Flash 8GB 8GB 8GB 8GB
Consumption (W) 7 7 24 24
RAM 2 GB DDR3L 2 GB DDR3L 2 GB DDR3L 2 GB DDR3L
USB Port 2 x vers. 2.0 2 x vers. 2.0 2 x vers. 2.0 2 x vers. 2.0
Serial Port 1 X RS232/485 1 X RS232/485 1 X RS232/485 1 X RS232/485
Expansion Slot 1 x MINI PCI express 1 x MINI PCI express 1 x MINI PCI express 1 x MINI PCI express
Ethernet Port 1 x 1 GB + 1 x 10 / 100 Mb 1 x 1 GB + 1 x 10 / 100 Mb 1 x 1 GB + 1 x 10 / 100 Mb 1 x 1 GB + 1 x 10 / 100 Mb
Weight (kg) 0.5 0.5 1.1 3.7

Automation Browser embedded:

  • Java and HTML5 compatibility.
  • Multi web server capability.
  EW107BD500 EW115BD5SP
Display Size 7" 15,6"
Serial Port - 1 X RS232/485
