Thiết bị IP Intercom TCIV-3 - Turbine Compact IP Model: 1008115030 ZENITEL VIỆT NAM

Quick Overview

  1. Model: 1008115030
  2. Xuất xứ: NORWAY
  3. Nhà cung cấp: STC Việt Nam
  4. Hãng sản xuất: ZENITEL VIETNAM

Tình trạng: Có sẵn

Regular Price:

Special Price Liên Hệ: 0918 364 352

Liên hệ Tư vấn

Chi tiết

Đại Lý Ủy Quyền Zenitel Việt Nam

Giới thiệu tính năng chính:

Thiết bị IP Intercom TCIV-3 - Turbine Compact IP Model: 1008115030 ZENITEL VIỆT NAM

  • The Turbine Compact Intercom Video station, TCIV, provides a dynamic HD-quality solution that is flexible, expandable and easily integrated. It removes the obstacles of noise and bandwidth constraints with active noise cancellation, echo reduction and processing power at the device. By deploying this virtual guard, security teams can hear, see, and speak in real time. Vingtor-Stentofon designed this critical communication solution to withstand extreme fluctuations in temperature, aggressive vandals, dirty and dusty environments, and water.As a native IP platform, it is easily integrated into a company’s networked solutions.
  • All IP stations in the Turbine series utilize the latest technology to create unparalleled audio quality. Some of the many features include: HD voice quality, Open Duplex, Active Noise Cancellation, MEMS microphone, a 10W Class D amplifier and our unique speaker grille design. These features, in conjunction the company's  65+ years of experience with acoustic technology, are just a few of the many factors that contribute to our superior audio quality. The Turbine IP Video Intercom range expands this feature set with wide FoV Video, Digital PTZ and support for H.264 or MJPEG.

Field of View



Ứng dụng: Ga tàu điện ngầm, Sân Bay, Hải Cảng, Tòa Nhà,...

Tất cả các trạm IP trong loạt tuabin Vingtor-Stentofon sử dụng công nghệ mới nhất để tạo ra chất lượng âm thanh tuyệt vời. Một số tính năng bao gồm: chất lượng giọng nói HD, Mở song công, Khử tiếng ồn chủ động, micrô MEMS, bộ khuếch đại 10W Class D và thiết kế lưới tản nhiệt loa độc đáo của chúng tôi. Những tính năng này, kết hợp với Vingtor-Stentofon sườn hơn 65 năm kinh nghiệm với công nghệ âm thanh chỉ là một vài trong số nhiều yếu tố góp phần vào chất lượng âm thanh vượt trội của chúng tôi.

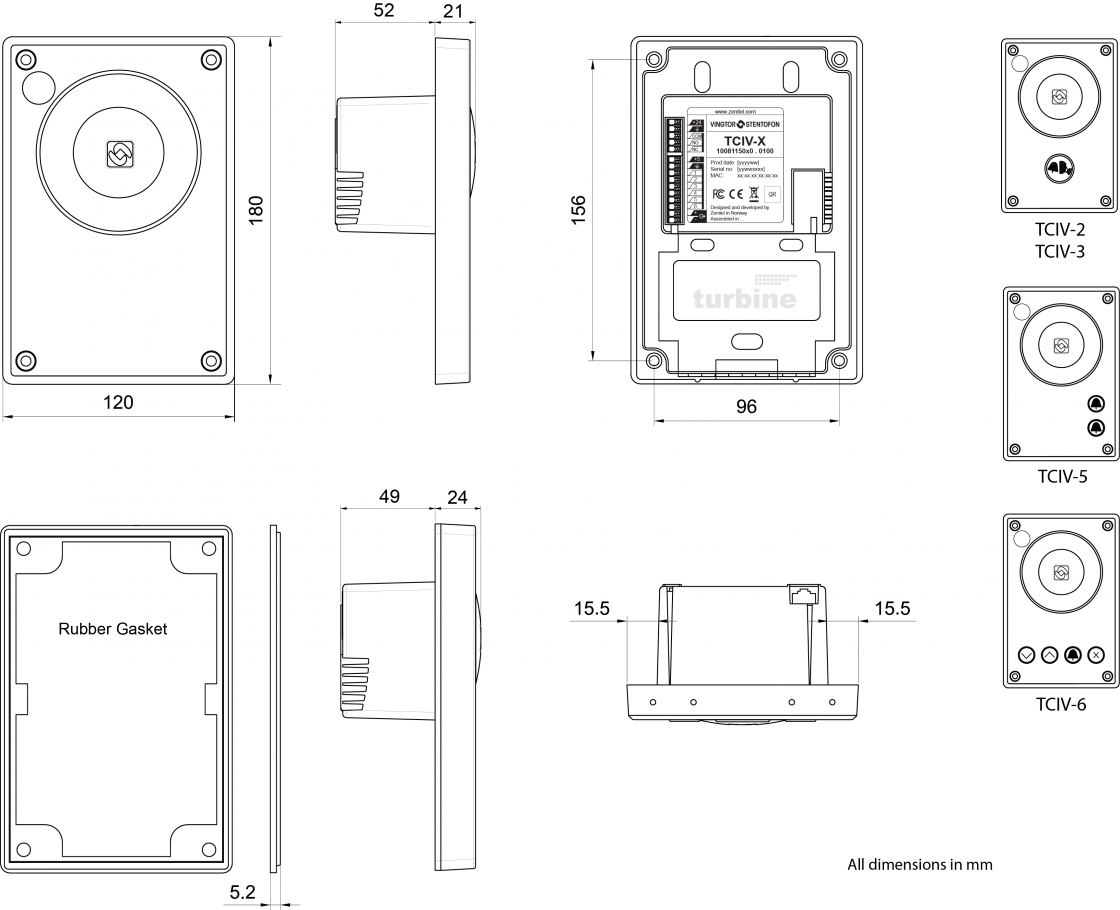

Kích thước:

Thiết bị cùng tính năng được ZENITEL Việt Nam Phân Phối (Liên hệ: 0918 364 352)

TCIS-1

Item Number: 1008111010

Đại Lý Zenitel Việt Nam

TCIS-3

Item Number: 1008111030

Đại Lý Zenitel Việt Nam

TCIS-4

Item Number: 1008111040

Đại Lý Zenitel Việt Nam

TCIS-5

Item Number: 1008111050

Đại Lý Zenitel Việt Nam

TCIS-6

Item Number: 1008111060

Đại Lý Zenitel Việt Nam

TCIV-2

Item Number: 1008115020

Đại Lý Zenitel Việt Nam

TCIA-2

Item Number: 1008113020

Đại Lý Zenitel Việt Nam

TCIS-C1

Item Number: 1008111901

Đại Lý Zenitel Việt Nam

Chi tiết

AUDIO
SPL peak power at 1m in open duplex 90 dB
SPL peak power at 1m in half duplex 100 dB
SPL peak power at 1m in program distribution and announcement 100 dB
Noise cancelling - suppression of musical noise Yes
Noise cancelling - suppression of static noise Yes
Noise cancelling - suppression of rapidly changing noise Yes
Codecs G.711, G.722, G.729
Frequency range, G.722 Codec 200 Hz – 7000 Hz
Audio technology Modes: Full open duplex, switched open duplex
  Adaptive jitter buffer
  Custom Ringing Tone
  Audio Mixing – Conversation and Group Call
  Sound Level Detection / scream alarm (only in AlphaCom)
  Automatic gain control (microphone)
Internal speaker amplifier 10 W class D
Microphone technology Digital MEMS, omnidirectional microphone
Automatic Volume Control (AVC) Undistorted and clear audio
Acoustic Echo Cancellation (AEC) Prevents audio feedback even at high volumes (95dB)
10W Speaker Matches 10W amp for distortion-free broadcast level sound


VIDEO
Image Sensor 1/2.5" RGB CMOS
Lens 3.4mm, F3.5, fixed iris, fixed focus 40cm to infinity
Light Sensitivity Down to 5 lux
Resolution 320x240 / 640x480 pixels
Frame Rate Up to 25 FPS in 480P *
Supported Codecs MJPEG, H.264 **
Digital PTZ Yes
Digital Zoom Up to 2.5x
Field of View horizontal=90 degrees, vertical=60 degrees ***
Snapshot Function No
  * * 25 FPS is only supported in H.264 mode, while MJPEG is limited to 10 FPS. FPS options do not depend on resolution, only on codec.
  ** AlphaCom mode supports only RTSP H.264 mode, while other modes support SIP H.264.
  *** FoV depends on video mode (may be subject to change)


HARDWARE
Ethernet connector 1 x RJ-45
All other connectors Tool less, spring loaded, vibration proof terminals
General inputs and outputs 6 (configurable)
Outputs 12mA as LED drivers
Change-over relay (NO+NC+COM) Max: 250VAC/220VDC, 2A, 60W
Power options PoE and or external power supply
PoE (Power over Ethernet) IEEE 802.3af standard, Class 0 (0.44W to 12.95 W)
External power supply 24 VDC (16 – 48 V)
Power consumption Idle 3.5W, max 12W (depending on volume)
Audio Line out / Induction loop signal 600 Ohm
Button backlight LED
Call indication Icons/colors for hearing impaired.


CONSTRUCTION
Dimensions (HxWxD) 180 x 120 x 73 mm / 7.1” x 4.7” x 2.9”
Dimensions after flush mount 180 x 120 x 24 mm / 7.1” x 4.7” x 0.9”
Dimensions with on wall box 180 x 120 x 86 mm / 7.1” x 4.7” x 3.4”
Weight 1 kg / 2.2 lbs.
Faceplate material 3 mm / 0.12” PMMA, color printed on backside
Base / frame material 3 mm / 0.12” Aluminum alloy - A413.0, AlSi12Fe, painted
Electronics cover material Polycarbonate (translucent)
Gasket material Silicone rubber
Fastening bracket material SECC Steel
Button material 3 mm / 0.12” Polycarbonate (transparent)
Button travel length 1.25 mm
Button activation force 350 gf
Button push-cycles before failure 300 000
Loudspeaker poke protection, large diameter object 3D cast aluminum speaker grille
Loudspeaker poke protection, small diameter objects Stainless steel mesh, acoustically transparent
Anechoic Design Open flow anechoic design eliminates "standing waves"


NETWORKING & PROTOCOLS
Protocols IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, RTSP, RTCP, SRTP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery
LAN protocols Power over Ethernet (IEEE 802.3 a-f) Network Access Control (IEEE 802.1x)
Management and operation HTTP/HTTPS (Web configuration). DHCP and static IP. Remote automatic software upgrade. Centralized monitoring.
Advanced supervision functions E.g network test, tone test, status reports (only in AlphaCom)
SIP support RFC 3261 (SIP base standard) RFC 3515 (SIP refer) RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme
DTMF support RFC 2833, 2976 (SIP info)
Integration and API AlphaCom, Scripting (plugins)
ENVIRONMENTAL

ENVIRONMENTAL
IP rating IP-65, tested according to EN 60529 (applies when mounted in TA-1 back box)
Operating temperature range -30° to 70° C / -22° to 158 ° F
Storage temperature range -40° to 70° C / -40° to 158 ° F
Relative humidity < 95% not condensing
Corrosion Salty mist, tested according to EN60945
Vibration Tested according to EN60945
UV-resistant Yes
EMC CE and FCC Part 15 UN Regulation 10, revision 4 + Corr.1 + Amend.1
Compliances IEC/EN 61000-6 Light and heavy industry IEC/EN 50486 Equipment for use in audio video door-entry systems


CERTIFICATIONS
Certificates UL 60950-1, cUL 60950-1, CB to IEC 60950-1
ONVIF Conformance Profile S for streaming video


OTHER SPECIFICATIONS
IP address information Speaks IP address after system boot
Button lifetime > 1 000 000 cycles
Country of manufacture Poland
