Lumia 355 – 365 - Digital Signage - ESA Automation Viet Nam

0 Review(s)

Quick Overview

Model: Lumia 355 – 365
Xuất xứ: Italy
Nhà cung cấp: STC Viet Nam
Hãng sản xuất: ESA AUTOMATION

Availability: In Stock

Regular Price:

Special Price Liên Hệ: 0918 364 352

Contact

Mr Duy
0918 364 352

Qty:

Details

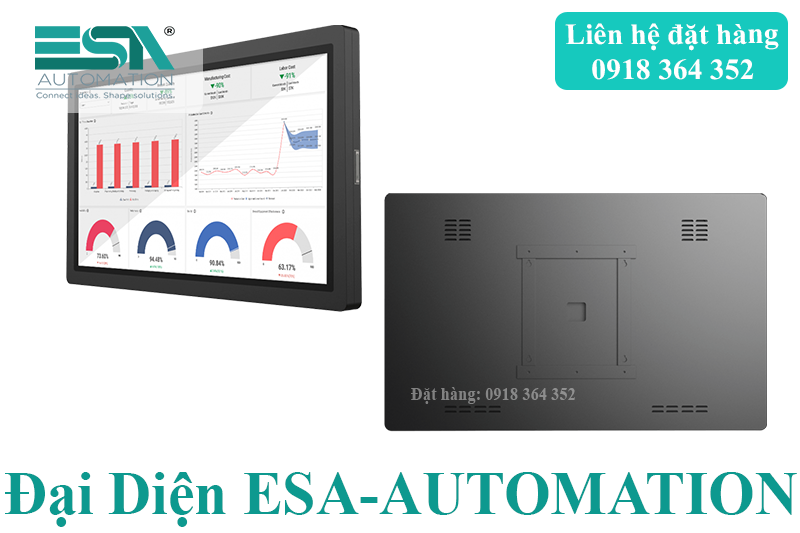

Digital Signage Lumia 355 – 365 Android based industrial monitor

Android based 4K – HD digital signage monitor with native web app, integrated mediaplayer, HTML5 kiosk browser and multi view option..Fits perfectly any IoT 4.0 Industrial application combining both webbased visualization and multiview presentations. IP55 full protection with industrial grade components for any harsh industrial enviroment. Easy configuration software for both remote programming and control.

Feature :

Android 7.1, RK3288 Quad core processor
4K HD industrial LED display
Wifi/RJ45/RS232/USB/GPIO/IR ports
True flat front tempered glass front
IP55 aluminum front and steel back
Capacitive touch screen or without touch screen
Multi Video input
Install and launch apps remotely
Operate, update, maintain remotely
Develop and launch your own content
VESA (400mm) and wall fix

Details

LUMIA 355CVDS000 LUMIA355NVDS000 (no touch)	LUMIA 365CVDS000 LUMIA365NVDS000 (no touch)
Size		1348mm819mm105mm（LWT）	1610mm1000.4mm105mm（LWT）
Color		Front black, Industrial white back.	Front black, Industrial white back.
Display	Size	55inches (LG) 4K industrial LED	65inches (LG) 4K industrial LED
	Resolution	3840*2160	3840*2160
	Display size	1209.6 × 680.4 mm	1428.48 ×803.52 mm
	Brightness	500cd/m2	500cd/m2
	Contrast	1900-03-02 12:01:00	1900-03-02 12:01:00
	screen ratio	1970-01-01 16:09:00	1970-01-01 16:09:00
	Color	16.7M (8-bit + Hi-FRC) , CIE1931 72%	16.7M (8-bit + Hi-FRC) , CIE1931 72%
	View angle	88/88/88/88	88/88/88/88
	Respond time	8 (Typ.)(Tr+Td) (ms)	8 (Typ.)(Tr+Td) (ms)
Board		RK3288 Quad core Cortex A17, double channel LVDS, ARM Mali-T764 GPU. TE, ASTC, AFBC memory compression, support 2160P and 4k H.264 HP 1080P@30fps video decoding
		1.6 GHz	1.6 GHz
		RAM: 2GB	RAM: 2GB
		Flash: 16G	Flash: 16G
		1xTF slot	1xTF slot
		1xGPIO	1xGPIO
		1xIR	1xIR
		2xRS232	2xRS232
		2xUSB 2.0	2xUSB 2.0
		1xRJ45	1xRJ45
		1xHDMI	1xHDMI
		1xVGA	1xVGA
		1xWIFI	1xWIFI
		Android version 7.1	Android version 7.1
PCAP		55" water proof	65" water proof
	Type	Projected capacitive touch screen	Projected capacitive touch screen
	Points	10points	10points
	Transmittance	0.95	0.95
	Resolution	4096x4096	4096x4096
	Life	50000hours	50000hours
	Touch respond time	<=3ms	<=3ms
	Hardness	Mohs 7	Mohs 7
Sound		Built-in speakers	Built-in speakers
Power supply		100-240VAC,50/60HZ	100-240VAC,50/60HZ
Power		190W	230W
Working temperature		-10℃~65℃	-10℃~65℃
Working humidity		10%-90%	10%-90%
Storage temperature		-20°C-60°C	-20°C-60°C
IP		IP55 front	IP55 front
Main features	Customize split screen:	support 1-8 view areas	support 1-8 view areas
	Multi management	multi-level and users manage	multi-level and users manage
	Images formats	.jpg, jpeg.bmp,.png,gif.	.jpg, jpeg.bmp,.png,gif.
	Video formats	.avi, .mkv,.mov,.mp4,.mpg,.is,.vob,.trp,.flv,.wmv	.avi, .mkv,.mov,.mp4,.mpg,.is,.vob,.trp,.flv,.wmv
	Audio formats	.mp3, .wma, .ogg, .aac, .wav	.mp3, .wma, .ogg, .aac, .wav
	File formats	pdf, word, excel, .ppt	pdf, word, excel, .ppt
	Network	3G/4G, wifi, LAN	3G/4G, wifi, LAN
	On/Off	Scheduled on/off	Scheduled on/off
	Remote control	Volume and bright remotely control	Volume and bright remotely control
	U disk	support U disk import files and pictures	support U disk import files and pictures
