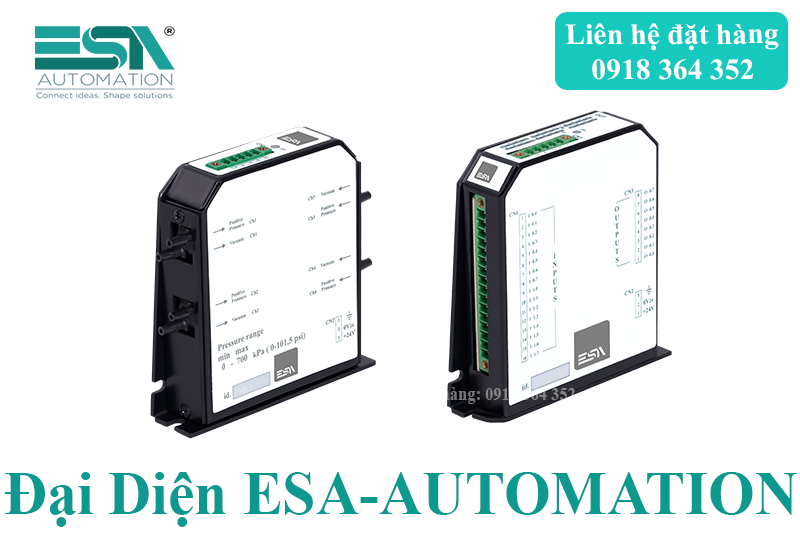

EW600 I/O Modular and easy to install - ESA Automation Viet Nam

0 Review(s)

Quick Overview

  1. Model: EW600
  2. Xuất xứ: Italy
  3. Nhà cung cấp: STC Viet Nam
  4. Hãng sản xuất: ESA AUTOMATION

Availability: In Stock

Regular Price:

Special Price Liên Hệ: 0918 364 352

Contact

Details

EW600 I/O - Modular and easy to install

Ergonomic and easy to install, these devices stand out for their high modularity which allows you to create multiple configurations according to your needs. Ideal for controlling any application.

  • High modularity to create different configurations.
  • Fast cabling and extracting system.
  • Contemporary and minimalist design.
  • Perfect to complete our EW100C HMIs.

Details

EW600 INPUT

Digital I/O
EW600B08B04
Supply Voltage (Vdc) 24
Isolation Optoisolated
Input Number 8
Input Type PNP, NPN
Output Number 4
Output Type PNP ( 300 mA/output)
Protection Degree IP20
Operating Temperature (°C) -10 ... + 50 non condensing
Storage Temperature (°C) -20 ... + 65
Humidity <90% non condensing
External dimensions (mm) 96x72x20
Certifications CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC / Directive 94/9/EC Atex Group п – Category 3 G-D Zone 2/22 (Mounted on EW100AC)



Analog I/O
EW600A03A02
Supply Voltage (Vdc) 24
Input Number 3
Input Type 0/5 V, 0/10 V, +10/-10 V, 0/20 mA, 4/20 mA
Output Number 2
Output Type 0/5 V, 0/10 V, +10/-10 V, 0/20 mA, 4/20 mA
Resolution 16 Bit
Protection Degree IP20
Operating Temperature (°C) -10 ... + 50 (non condensing)
Storage Temperature (°C) -20 ... + 65
Humidity <90% (non condensing)
External dimensions (mm) 96x72x20
Certifications CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC / Directive 94/9/EC Atex Group п – Category 3 G-D Zone 2/22 (Mounted on EW100AC)



HIGH SPEED INPUT
EW600C02N00
Supply Voltage (Vdc) 24
Input Numbers 2
Isolation Optoisolated
Input Type Incremental Pulse / Differential phase (4x) / Up/Down /
Pulse + Direction (5-30 Vdc)
Frequency (KHz) 100
Operating Temperature (°C) -10 … + 50 non condensing
Storage Temperature (°C) -20 … + 65
Humidity <90% non condensing
External dimensions (W/H/D) (mm) 96 x 72 x 20
Protection Degree IP 20
Certifications CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC / Directive 94/9/EC Atex Group п – Category 3 G-D Zone 2/22 (Mounted on EW100AC)



THERMOCOUPLE INPUT
EW600D06N00
Input Numbers 6
Input Type K / J / E / T / N / B / R / S
Resolution (°C) +0,1° / - 0,1°
Cold Junction Internal and External
Operating Temperature (°C) -10 … + 50 non condensing
Storage Temperature (°C) -20 … + 65
Humidity <90% non condensing
External dimensions (W/H/D) (mm) 96 x 72 x 20
Protection Degree IP 20
Certifications CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC/ Directive 94/9/EC Atex Group п – Category 3 G-D Zone 2/22 (Mounted on EW100AC)



THERMORESISTANCE INPUT
EW600E04N00
Input Numbers 4
Input Type Pt100 / Pt200/Pt500/Pt1000 / Ni100/Ni1000
Resolution (°C) +0,1° / - 0,1°
Operating Temperature (°C) -10 … + 50 non condensing
Storage Temperature (°C) -20 … + 65
Humidity <90% non condensing
External dimensions (W/H/D) (mm) 96 x 72 x 20
Protection Degree IP 20
Certifications CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC / Directive 94/9/EC Atex Group п – Category 3 G-D Zone 2/22 (Mounted on EW100AC)



EW600 OUTPUT

Digital I/O
EW600B08B04
Supply Voltage (Vdc) 24
Isolation Optoisolated
Input Number 8
Input Type PNP, NPN
Output Number 4
Output Type PNP ( 300 mA/output)
Protection Degree IP20
Operating Temperature (°C) -10 ... + 50 non condensing
Storage Temperature (°C) -20 ... + 65
Humidity <90% non condensing
External dimensions (mm) 96x72x20
Certifications CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC / Directive 94/9/EC Atex Group п – Category 3 G-D Zone 2/22 (Mounted on EW100AC)



Analog I/O
EW600A03A02
Supply Voltage (Vdc) 24
Input Number 3
Input Type 0/5 V, 0/10 V, +10/-10 V, 0/20 mA, 4/20 mA
Output Number 2
Output Type 0/5 V, 0/10 V, +10/-10 V, 0/20 mA, 4/20 mA
Resolution 16 Bit
Protection Degree IP20
Operating Temperature (°C) -10 ... + 50 (non condensing)
Storage Temperature (°C) -20 ... + 65
Humidity <90% (non condensing)
External dimensions (mm) 96x72x20
Certifications CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC / Directive 94/9/EC Atex Group п – Category 3 G-D Zone 2/22 (Mounted on EW100AC)



HIGH SPEED OUTPUT
EW600N00C04
Supply Voltage (Vdc) 24
Output Numbers 4
Isolation Optoisolated
Output Type CW/CCW - Pulse+Direction 12 – 32VDc push-pull
Output Current (mA) 5 - 10
Resolution (Hz – KHz) 200Hz – 300KHz
Operating Temperature (°C) -10 … + 50 non condensing
Storage Temperature (°C) -20 … + 65
Humidity <90% non condensing
External dimensions (W/H/D) (mm) 96 x 72 x 20
Protection Degree IP 20
Certifications CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC / Directive 94/9/EC Atex Group п – Category 3 G-D Zone 2/22 (Mounted on EW100AC)



PULSE WITH MODULATION OUTPUT
EW600N00E04
Supply Voltage (Vdc) 24
Output Numbers 4
Isolation PWM –12 – 32VDc push-pull
Output Current (mA) 5 - 10
Resolution (Hz – KHz) 200Hz – 300KHz
Operating Temperature (°C) -10 … + 50 non condensing
Storage Temperature (°C) -20 … + 65
Humidity <90% non condensing
External dimensions (W/H/D) (mm) 96 x 72 x 20
Protection Degree IP 20
Certifications CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC / Directive 94/9/EC Atex Group п – Category 3 G-D Zone 2/22 (Mounted on EW100AC)
